Microsoft ADFS 3.0 and 4.0 integration – Help center

Configuring authorization in Picvario via Microsoft ADFS requires configuring a number of standard parameters in the Picvario administrative panel, used regardless of your ADFS version. The only difference is the way of obtaining these parameters in different versions of Microsoft ADFS.

Configuring Microsoft ADFS 3.0

Integration occurs through the Relying Party Trust configuration. The setup instructions can be found here:

https://django-auth-adfs.readthedocs.io/en/latest/adfs_3.0_config_guide.html#step-1-configuring-a-relying-party-trust

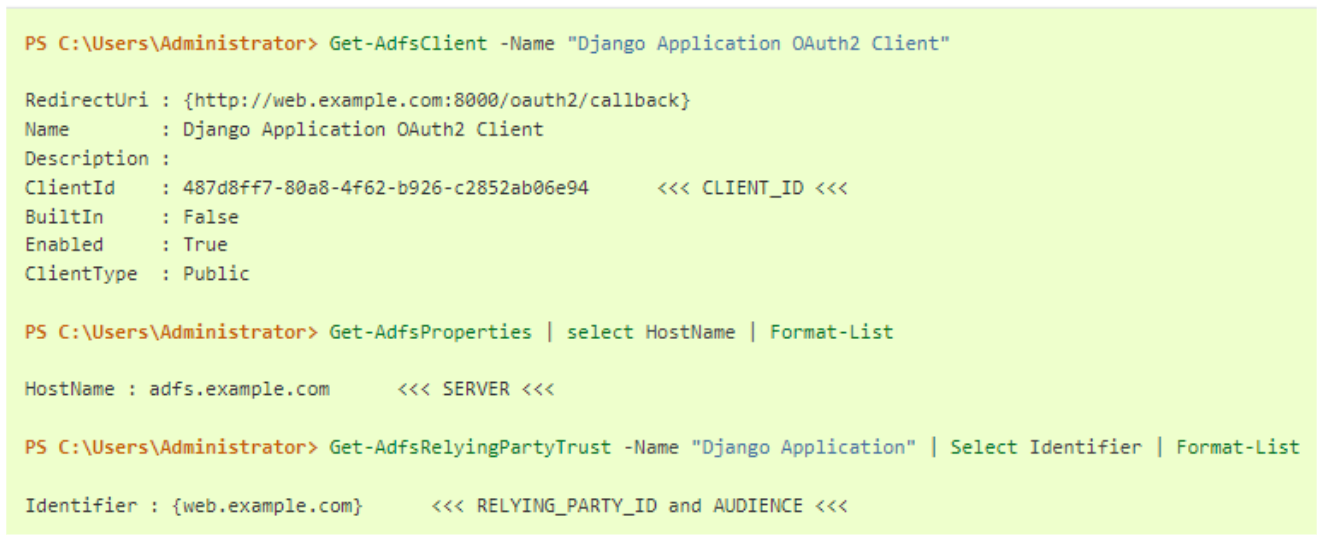

After completing the configuration, you can get the necessary parameters by running the following commands in PowerShell:

Screen 1.png

Configuring Microsoft ADFS 4.0

Integration occurs through the Application Group configuration. The setup instructions can be found here:

https://django-auth-adfs.readthedocs.io/en/latest/adfs_4.0_config_guide.html#step-3-determine-configuration-settings

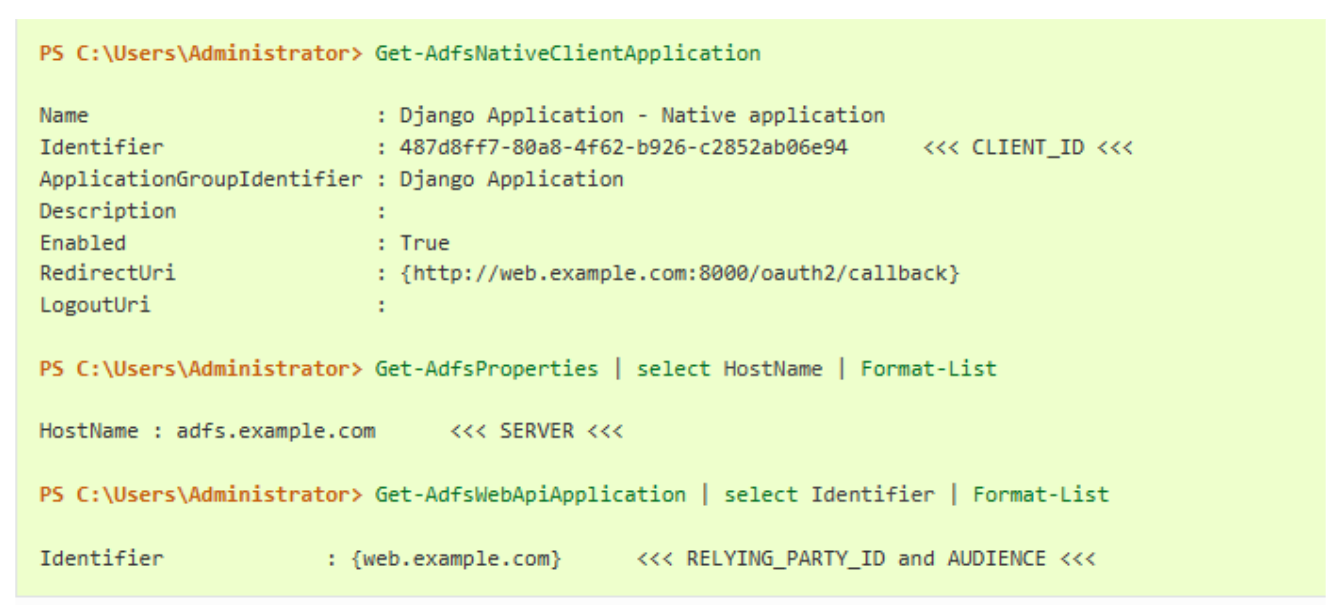

After completing the configuration, you can get the necessary parameters by running the following commands in PowerShell:

Screen 2.png

Configuring Picvario

To configure authorization in the administrative panel, you need to create several options:

ADFS_AUTH_ENABLED – the value is True

OPENID_AUTHENABLED – the value is False

ADFS_CLIENT_ID – the value is Relying Party ID

ADFS_SERVER – the value is your ADFS server address

ADFS_AUDIENCE – the value is as follows:

ADFS 3.0 – workspace address (e.g.: http://li.picvar.io)
ADFS 4.0 - microsoft:identityserver :ADFS_CLIENT_ID

ADFS_RELYING_PARTY_ID – the value is the same as ADFS_CLIENT_ID

ADFS 3.0 – workspace address (e.g.: http://li.picvar.io)
ADFS 4.0 - microsoft:identityserver :ADFS_CLIENT_ID

ADFS_USERNAME_CLAIM – the value is email

ADFS_GROUPS_CLAIM – the value is groups

Option	Example	Public
ADFS_AUTH_ENABLED	True	True
OPENID_AUTHENABLED	False	True
ADFS_CLIENT_ID	3aaf3b0c-6287-45d6-a128-5a20bf6652cc	False
ADFS_SERVER	adfs.domain.com
ADFS_AUDIENCE	microsoft:identityserver:3aaf3b0c-6287-45d6-a128-5a20bf6652cc	False
ADFS_RELYING_PARTY_ID	3aaf3b0c-6287-45d6-a128-5a20bf6652cc	False
ADFS_USERNAME_CLAIM	Email	True
ADFS_GROUPS_CLAIM	groups	True

In the administrative panel, go to Home > Options > Options, or click the Change link.

Screen 3.png

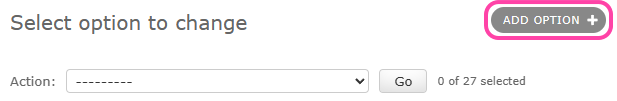

To create a new option, click the ADD OPTION button.

Screen 4.png

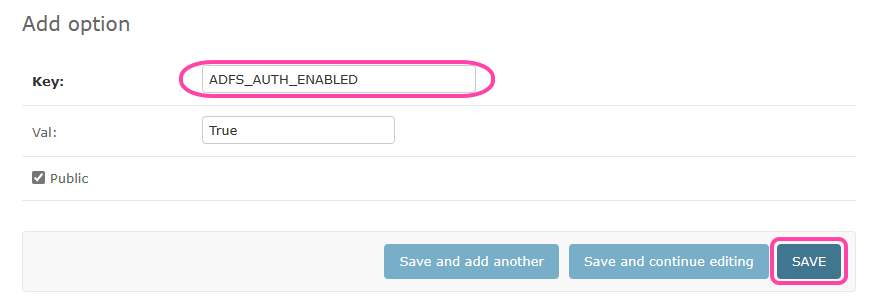

An editing page opens where you can specify the option and its value.

Screen 5.png

Create all the options above in the same way.

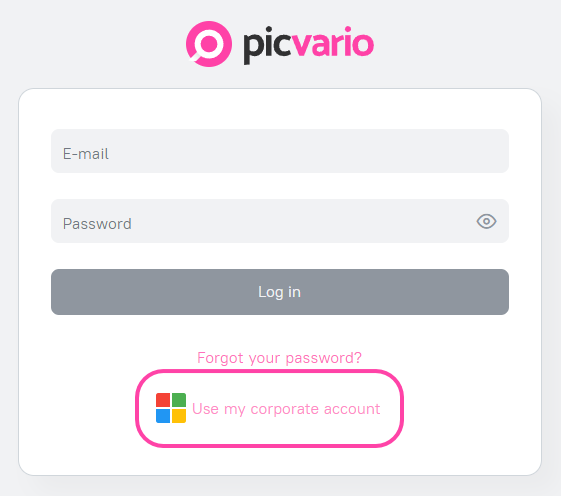

If all settings are successfully completed, a button will appear on the account login screen:

Screen 7.png

Click it to log in via Microsoft ADFS.
